Description
Metric
Imperial
Main Dimensions & Performance Data
| Do | 41 mm | Outer diameter |
| B | 30 mm | Width |
| Cr | 147,000 N | Basic dynamic load rating, radial |
| C0r | 210,000 N | Basic static load rating, radial |
| ≈m | 18.99 g | Weight |
Dimensions
| Di | 35 mm | Inner diameter |
| f | 1.5 mm | Outer chamfer |
| Fi min | 1 mm | Inner edge break, min. |
| Di OT | 0.22 mm | Inner diameter, upper tolerance |
| Do OT | 0.082 mm | Outside diameter, upper tolerance |
| Di UT | 0.12 mm | Inner diameter, lower tolerance |
| Do UT | 0.043 mm | Outside diameter, lower tolerance |
| BUT | -0.33 mm | Width, lower tolerance |
| BOT | 0 mm | Width, upper tolerance |
| fOT | 0.5 mm | Outer chamfer, upper tolerance |
| fUT | -0.5 mm | Outer chamfer, lower tolerance |
| Fi | 1 mm | Inner edge break |
Temperature range
| Tmin | -20 °C | Operating temperature min. |
| Tmax | 130 °C | Operating temperature max. |
Downloads:
Your current product variant
| Sealing | Without | Without |

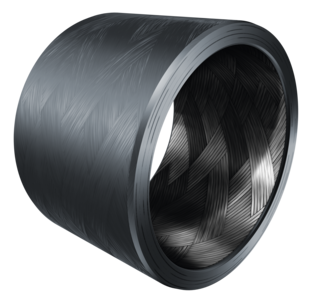

| Material sliding Layer | ELGOTEX | ELGOTEX filament wound bushes, maintenance-free |
Characteristics
