Description
Metric
Imperial
Main Dimensions & Performance Data
| d | M45X1,5 | Thread |
| D | 65 mm | Outside diameter |
| h | 14 mm | Height |
| MA | 5 Nm | Mounting torque set screw |
| FaB | 181,000 N | Breaking load, axial |
| ML | 110 Nm | Breakawag |
| MAL | 65 Nm | Mounting torque reference |
| MM | 1.48 kg*cm2 | Mass moment of inertia |
| ≈m | 0.19 kg | Weight |

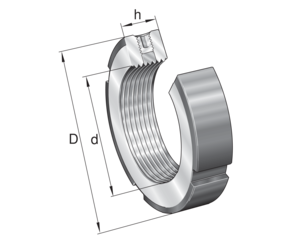

Dimensions
| d1 | 59 mm | Plant diameter outside |
| t | 2.5 mm | Hight retaining slot |
| b | 6 mm | Width retaining slot |
| c | 7 mm | Distance bore |
| m | M6 | Threaded – threaded pin |
