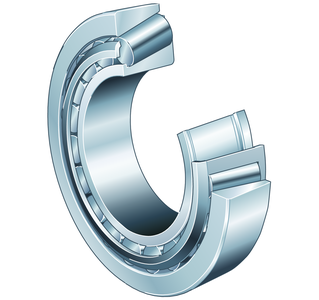

Main Dimensions & Performance Data
| d | 460 mm | Bore diameter |
| D | 620 mm | Outside diameter |
| B | 100 mm | Width, inner ring |
| C | 75 mm | Width, outer ring |
| T | 100 mm | Width, total |
| Cr | 1,760,000 N | Basic dynamic load rating, radial |
| C0r | 4,150,000 N | Basic static load rating, radial |
| Cur | 380,000 N | Fatigue load limit, radial |
| nG | 880 1/min | Limiting speed |
| ≈m | 83.1 kg | Weight |
Mounting dimensions
| da max | 486 mm | Maximum diameter of shaft shoulder |
| db min | 505 mm | Minimum diameter of shaft shoulder |
| Da min | 576 mm | Minimum diameter of housing shoulder |
| Db min | 600 mm | Minimum diameter of housing shoulder |
| Ca min | 11 mm | Minimum axial space |
| Cb min | 25 mm | Minimum axial space |
| ra max | 5 mm | Maximum fillet radius of shaft |
| rb max | 5 mm | Maximum fillet radius of housing |
Dimensions
| r1, 2 min | 5 mm | Minimum chamfer dimension of inner ring back face |
| r3, 4 min | 5 mm | Minimum chamfer dimension of outer ring back face |
| a | 120 mm | Distance between the apexes of the pressure cones |
| d1 | 538 mm | Guidance rib diameter of inner ring |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.43 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y | 1.41 | Dynamic axial load factor |
| Y0 | 0.77 | Static axial load factor |
Downloads:
Your current product variant
| Tolerance class | PN | Normal (ISO 492:2014) |
| Heat treatment | Standard | |
| Cage | Standard | Sheet steel cage, roller-guided |
| Quality level | Standard | |
| Number of rolling element rows | 1 | Single-row design |
