W 608 R

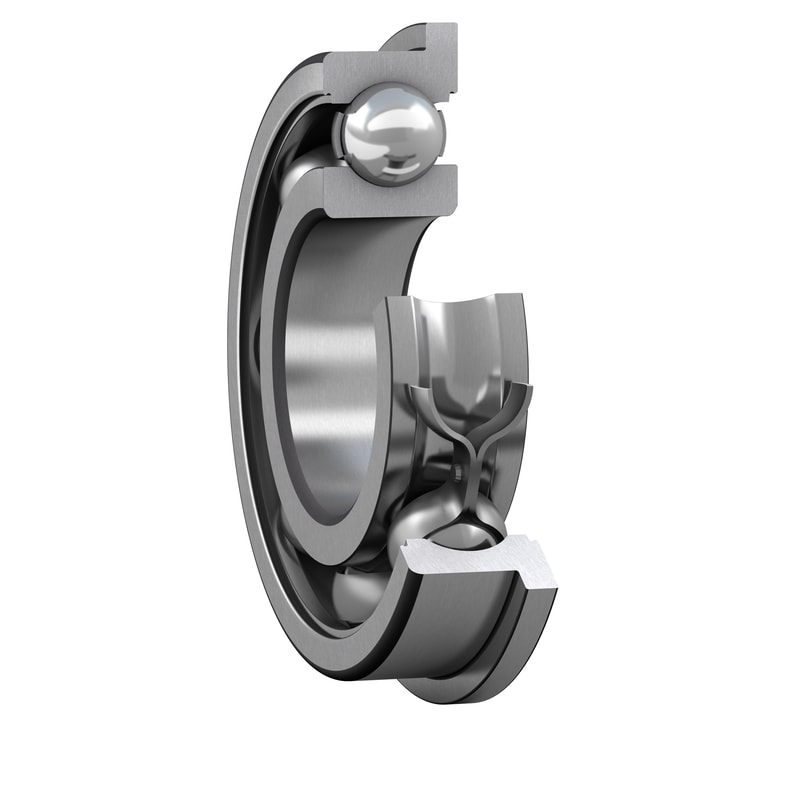

Deep groove ball bearingSingle row deep groove ball bearings are the most widely used bearing type and are particularly versatile. They have low friction and are optimized for low noise and low vibration, which enables high rotational speeds. They can accommodate radial and axial loads in both directions, are easy to mount, and require less maintenance than many other bearing types.
- Simple, versatile and robust design
- Low friction
- High-speed capability
- Accommodate radial and axial loads in both directions
- Require little maintenance
Description
Dimensions
| d | 8 mm | Bore diameter |
|---|---|---|
| D | 22 mm | Outside diameter |
| B | 7 mm | Width |
| d2 | ≈ 10.5 mm | Recess diameter |
| D2 | ≈ 19.03 mm | Recess diameter |
| D3 | 25 mm | Flange diameter |
| C | 1.5 mm | Flange width |
| r1,2 | min. 0.3 mm | Chamfer dimension |
Abutment dimensions
| da | min. 10 mm | Diameter of shaft abutment |
|---|---|---|
| ra | max. 0.3 mm | Radius of shaft or housing fillet |
Calculation data
| Basic dynamic load rating | C | 1.99 kN |
|---|---|---|
| Basic static load rating | C0 | 0.78 kN |
| Fatigue load limit | Pu | 0.034 kN |
| Reference speed | 75 000 r/min | |
| Limiting speed | 48 000 r/min | |
| Minimum load factor | kr | 0.03 |
| Calculation factor | f0 | 7.2 |
Mass
| Mass bearing | 0.012 kg |
Tolerance class
| Dimensional tolerances | Normal |
| Radial run-out | Normal |
