SNLN 3030 + 23030-2CS5K/VT143 + H 3030 E
The combination of housings, bearings and accessories is an excellent choice for a customized, reliable and sustainable solution for your shaft arrangement. Has a wide range of high-quality housing designs and sizes to meet your specific challenge – including specially designed housings for special applications.
- Many variants
- Customized combinations
- Cost-efficient
- Reliable
- Sustainable
Description
Associated products
| Housing | SNLN 3030 |
| Bearing | 23030 CCK/W33 |
| Adapter sleeve | H 3030 |
| Locating ring | 2 x FRB 15/225 |

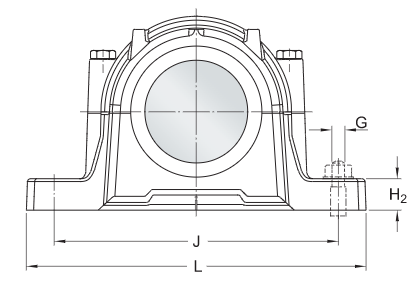

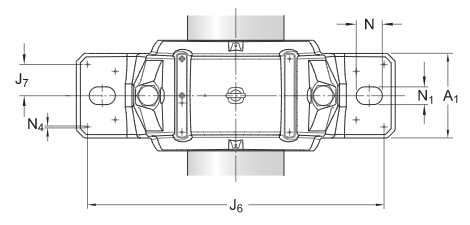

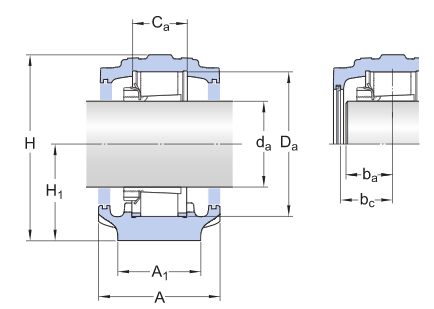

Dimensions
| da | 135 mm | Shaft diameter |
|---|---|---|
| Ca | 86 mm | Width of bearing seat |
| Da | 225 mm | Diameter of bearing seat |
| A | 190 mm | Width |
| A1 | 130 mm | Foot width |
| H | 290 mm | Height |
| H1 | 150 mm | Centre height of bearing seat |
| H2 | 50 mm | Foot height |
| J | 380 mm | Distance between attachment bolts |
| L | 445 mm | Length |
| N | 35 mm | Length of attachment bolt hole |
| N1 | 28 mm | Width of attachment bolt hole |
| ba | 57 mm | Distance bearing centre line to shaft end |
|---|---|---|
| bc | 82 mm | Distance bearing centre line to end cover |
| J6 | 414 mm | Distance between dowel pins |
|---|---|---|
| J7 | 46 mm | Axial offset of dowel pins |
| N4 | max.12 mm | Diameter of dowel pins |
| A2L | 215 mm | Width across labyrinth seals |
|---|---|---|
| A2T | 262 mm | Width across taconite seals |
| d2 | 234 mm | Diameter of seal |
Breaking loads, housing
| P55° | 780 kN | Breaking load |
|---|---|---|
| P90° | 470 kN | Breaking load |
| P120° | 350 kN | Breaking load |
| P150° | 310 kN | Breaking load |
| P180° | 390 kN | Breaking load |
| Pa | 130 kN | Breaking load |
Yield point, cap bolts
| Q120° | 900 kN | Load carrying ability of cap bolts |
|---|---|---|
| Q150° | 520 kN | Load carrying ability of cap bolts |
| Q180° | 450 kN | Load carrying ability of cap bolts |
Mass
| Mass housing | 40 kg |
Mounting information
| Size of cap bolt | M 24 x 130 | |
| Recommended tightening torque for cap bolts | 350 N·m | |
| Recommended diameter for attachment bolts | G | 24 mm |
| Recommended tightening torque for attachment bolts | 665 N·m | |
| Size of eye bolt | M10 | |
| Initial grease fill, 20% | 500 g | |
| Initial grease fill, 40% | 900 g |
