SK014-205-KRR

Deep groove ball bearing

Self-aligning deep groove ball bearings SK..-KRR, Cylindrical outer ring, inner ring with hexagonal bore, R seal on both sides

Description

SK014-205-KRR

SK014-205-KRR

Metric

Imperial

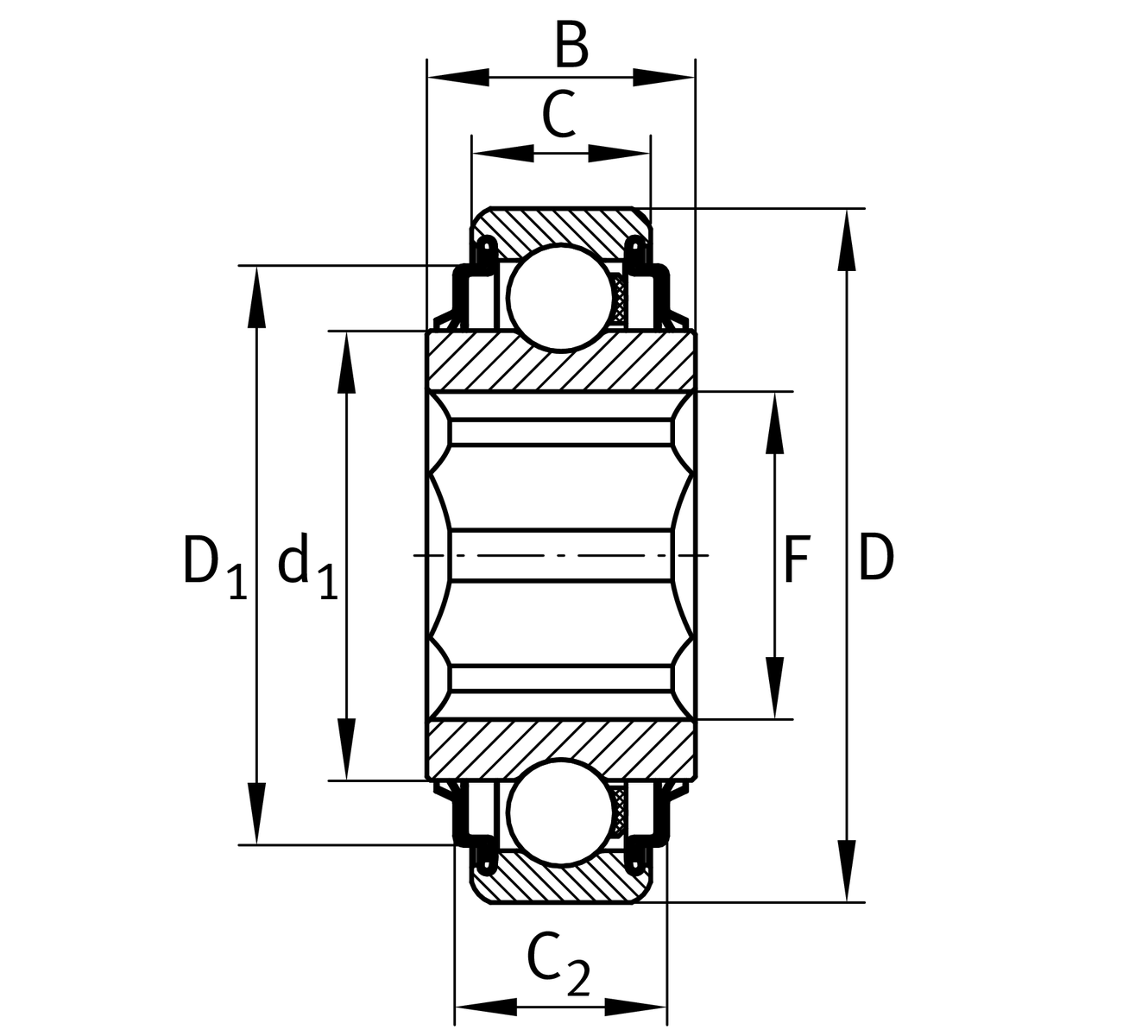

Main Dimensions & Performance Data
D52 mmOutside diameter
B25.4 mmWidth
Cr14,900 NBasic dynamic load rating, radial
C0r7,800 NBasic static load rating, radial
≈m175 gWeight
Dimensions
D142.5 mmOutside diameter seal
C15 mmWidth, outer ring

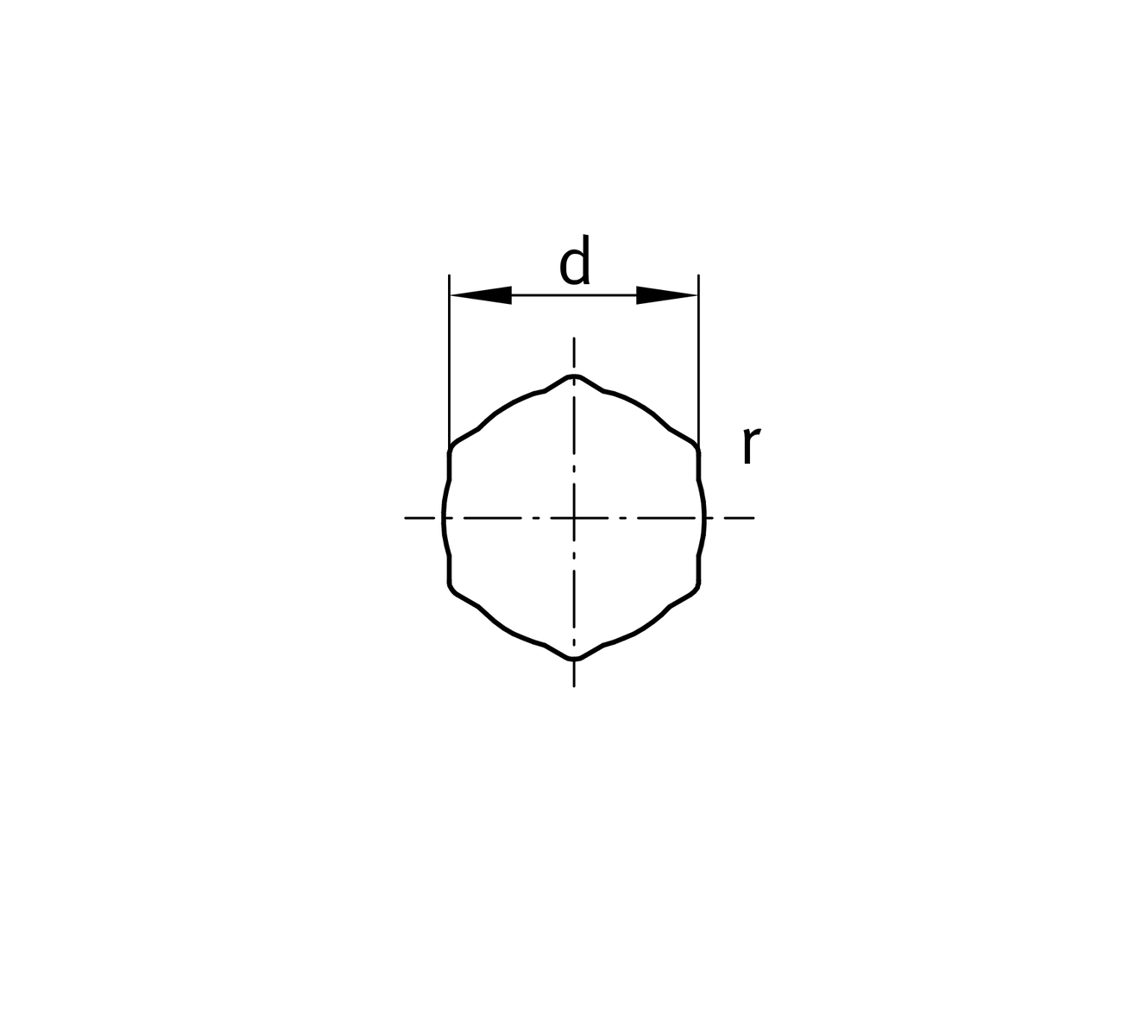

F26.5 mmMaximum distance hexagonal bore
r0.12 mmRadius hexagonal bore
C216.5 mmSealing total width
d133.8 mmRib diameter inner ring
d22.225 mmWidth of flats
d22.225 mmWidth across flats (Inch)
0.15 Width across flats upper tolerance
0.05 Width across flats lower tolerance
Calculation factors
f013.8 Calculation factor
The technical dimensions for this product are taken from different dimensional systems, the conversion to the other dimensional system [blue color] is without guarantee.
Downloads:
Data sheet (PDF)
Your current product variant
SealingKRRLip seals on both sides
Deviating ballset205205

Characteristics

clusteriteminfo.radialloadtranslation
clusteriteminfo.axialloadinonedirectiontranslation
clusteriteminfo.axialloadintwodirectionstranslation
clusteriteminfo.lifetimelubricationfreedomfrommaintenancetranslation
clusteriteminfo.greaselubricationtranslation
clusteriteminfo.sealedonbothsidestranslation
clusteriteminfo.staticangularerrorandmisalignmenttranslation
