SAFS 22534

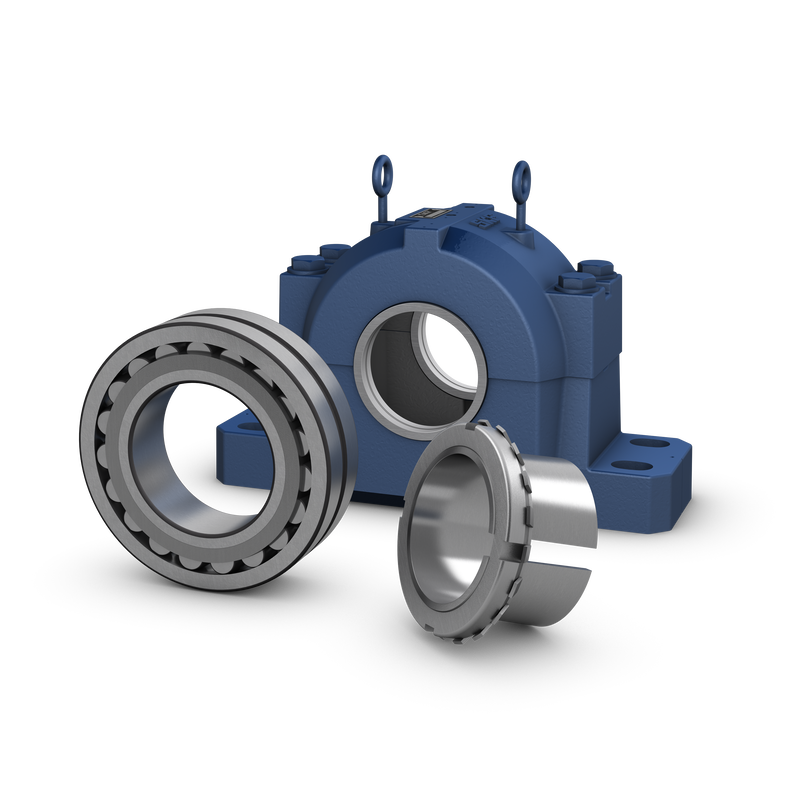

Pillow block housing with included bearingSAF and SAW split pillow blocks use a two-piece, cast metal housing with inch dimensions. With the included SKF bearings, seals, and related components, they provide a tailored solution to achieve maximum service life and reduce maintenance requirements for rotating equipment. These pillow blocks have been developed to be the best choice for design, quality, robustness, and cost efficiency.
- Robust design for tough operating conditions
- Customizable configurations
- Suitable for locating and non-locating bearing positions
- Cost-effective bearing solution
Description
Dimensions
| da | 150.813 mm | Shaft diameter |
|---|---|---|
| Da | 310 mm | Diameter of bearing seat |
G7 | Tolerance class of bearing seat | |
| Ca | 95.809 mm | Width of bearing seat |
| A1 | 171.45 mm | Housing foot width |
| A2 | 247.65 mm | Width |
| H | 360.363 mm | Height |
| H1 | 179.4 mm | Centre height of bearing seat |
| H2 | 69.85 mm | Foot height |
| J | min. 492.125 mm | Distance between attachment bolts |
| J | max. 549.275 mm | Distance between attachment bolts |
| J1 | 107.95 mm | Distance between attachment bolts, axial |
| L | 628.65 mm | Length |
| N1 | 28.575 mm | Width of attachment bolt hole |
| S | 4.763 mm | Offset of locating bearing |
| R1 | 115.888 mm | Distance of drain plug from centre |
|---|---|---|
| R2 | 39.688 mm | Height of drain plug position |
| RG | 3/4-14 NPT | Thread of drain hole |
| PG | 1/4-18 NPT | Thread for grease fitting in cap |
Calculation data
| Dynamic load rating | C | 1 183 kN |
|---|---|---|
| Static load rating | C0 | 1 460 kN |
| Fatigue load limit | Pu | 134 kN |
| Reference speed | 1 900 r/min | |
| Limiting speed | 2 600 r/min | |
| Max. speed for contact seal | 2 600 r/min | |
| Limiting value | e | 0.27 |
| Calculation factor | Y1 | 2.5 |
| Calculation factor | Y2 | 3.7 |
| Calculation factor | Y0 | 2.5 |
Recommended safe loads
| P60 | 345 kN | Safe load at 60° load angle |
|---|---|---|
| P90 | 207 kN | Safe load at 90° load angle |
| P120 | 127 kN | Safe load at 120° load angle |
| P150 | 113 kN | Safe load at 150° load angle |
| P180 | 133 kN | Safe load at 180° load angle |
| Pa | 86.7 kN | Safe load, axial |
Materials
| Housing material | Cast steel |
| Paint, corrosion protection | Paint – in accordance with ISO 12944-2, corrosivity category C2 |
Mass
| Mass | 165 kg |
Mounting information
| Cap bolt | 1-8 UNC x 5-1/2 | |
| Number of cap bolts | 4 | |
| Recommended tightening torque for cap bolts | 1 220.236 N·m | |
| SAE grade of cap bolt | 8 | |
| Eye bolt | 3/8-16 UNC | |
| Number of eye bolts | 2 | |
| Recommended diameter of attachment bolts | G | 25.4 mm |
| Required locating (stabilizing) ring | SR-34-0 | |
| Number of required locating rings | 1 |
| Initial grease fill | 878.85 g | |
| Oil level | h | 54.769 mm |
