RSRD25-150-L0
Idler pulley units
Belt tension pulleys RSRD..-L0, for round belts, steel cables and hemp ropes
Replaces
RSR D.25.150.LO
Description
Metric
Imperial

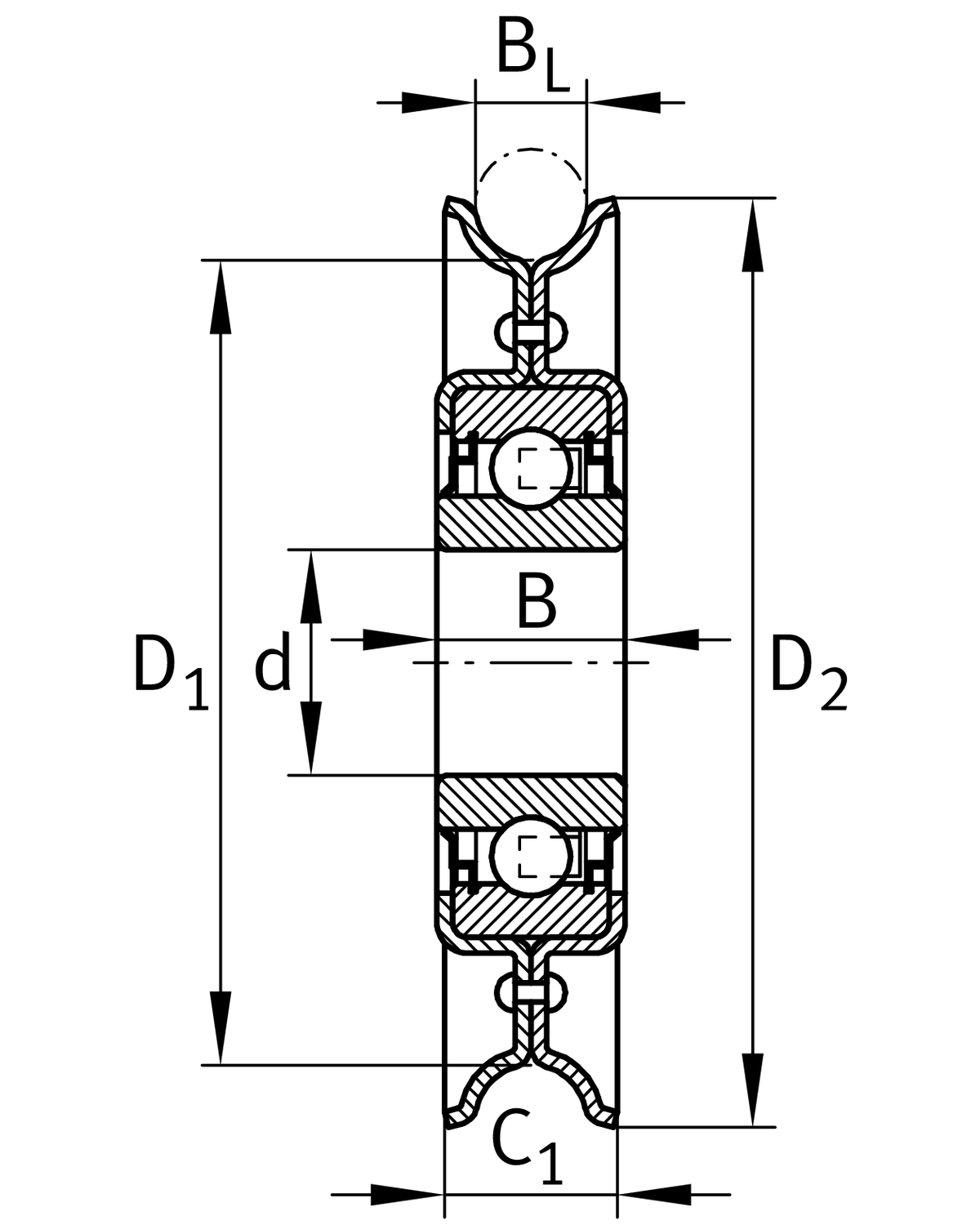

Main Dimensions & Performance Data
| d | 25 mm | Bore diameter |
| d | 0 mm | Upper tolerance |
| d | -0.01 mm | Lower tolerance |
| D1 | 133 mm | Raceway diameter idler pulley |
| C1 | 24 mm | Width idler pulley |
| Cr | 14,000 N | Basic dynamic load rating, radial |
| C0r | 7,800 N | Basic static load rating, radial |
| Cur | 410 N | Fatigue load limit, radial |
| ≈m | 0.78 kg | Weight |
Dimensions
| D2 | 154 mm | Outside diameter idler pulley |
| B | 21 mm | Width |
| BL | 17 mm | Width idler pulley raceway |
Your current product variant
| Manufacturing instruction | Without | none |
