RSL181005-XL

Cylindrical roller bearing

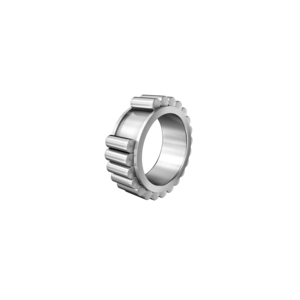

Cylindrical roller bearing RSL18..-XL, full complement roller set, single row, non-locating bearing, no outer ring, 2 ribs on inner ring, type RSL18

Display units

Metric

Imperial

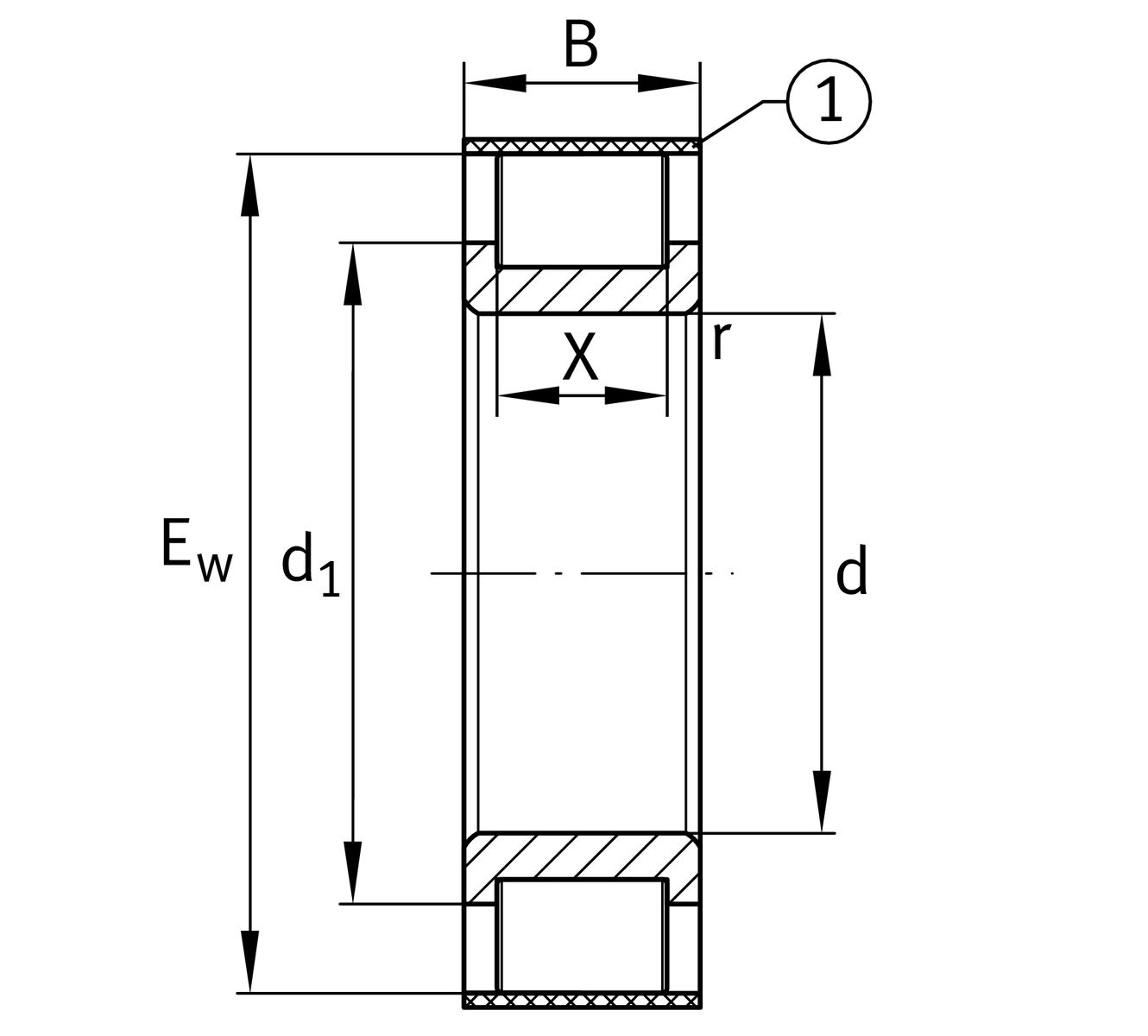

Main Dimensions & Performance Data

d	25 mm	Bore diameter
E_w	42.51 mm
B	12 mm	Width
C_r	26,600 N	Basic dynamic load rating, radial
C_0r	19,300 N	Basic static load rating, radial
C_ur	3,500 N	Fatigue load limit, radial
n_G	10,900 1/min	Limiting speed
≈m	0.06 kg	Weight

Mounting dimensions

d_{a min}

34.6 mm

Minimum diameter shaft shoulder

Dimensions

r_min	0.6 mm	Minimum chamfer dimension
d₁	34.6 mm	Maximum rib diameter inner ring
T_K	36.51 mm	pitch circle

Temperature range

T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Downloads:

Your current product variant

Number of rolling element rows

Single-row design
