RABRB15/47-XL-FA106
Radial insert ball bearing
Radial insert ball bearings RABR, with rubber interliner, location by eccentric locking collar, P seals on both sides
Replaces
RABRB15/47-FA106
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 15 mm | Bore diameter |
| D | 47.3 mm | Outside diameter |
| C | 18 mm | Width, outer ring |
| B2 | 31.1 mm | Width total |
| B1 | 28.6 mm | Locking collar total width |
| Cr | 9,800 N | Basic dynamic load rating, radial |
| C0r | 4,750 N | Basic static load rating, radial |
| Cur | 248 N | Fatigue load limit, radial |
| 840 | Load carrying capacity (rubber interliner) | |
| ≈m | 0.2 kg | Weight |

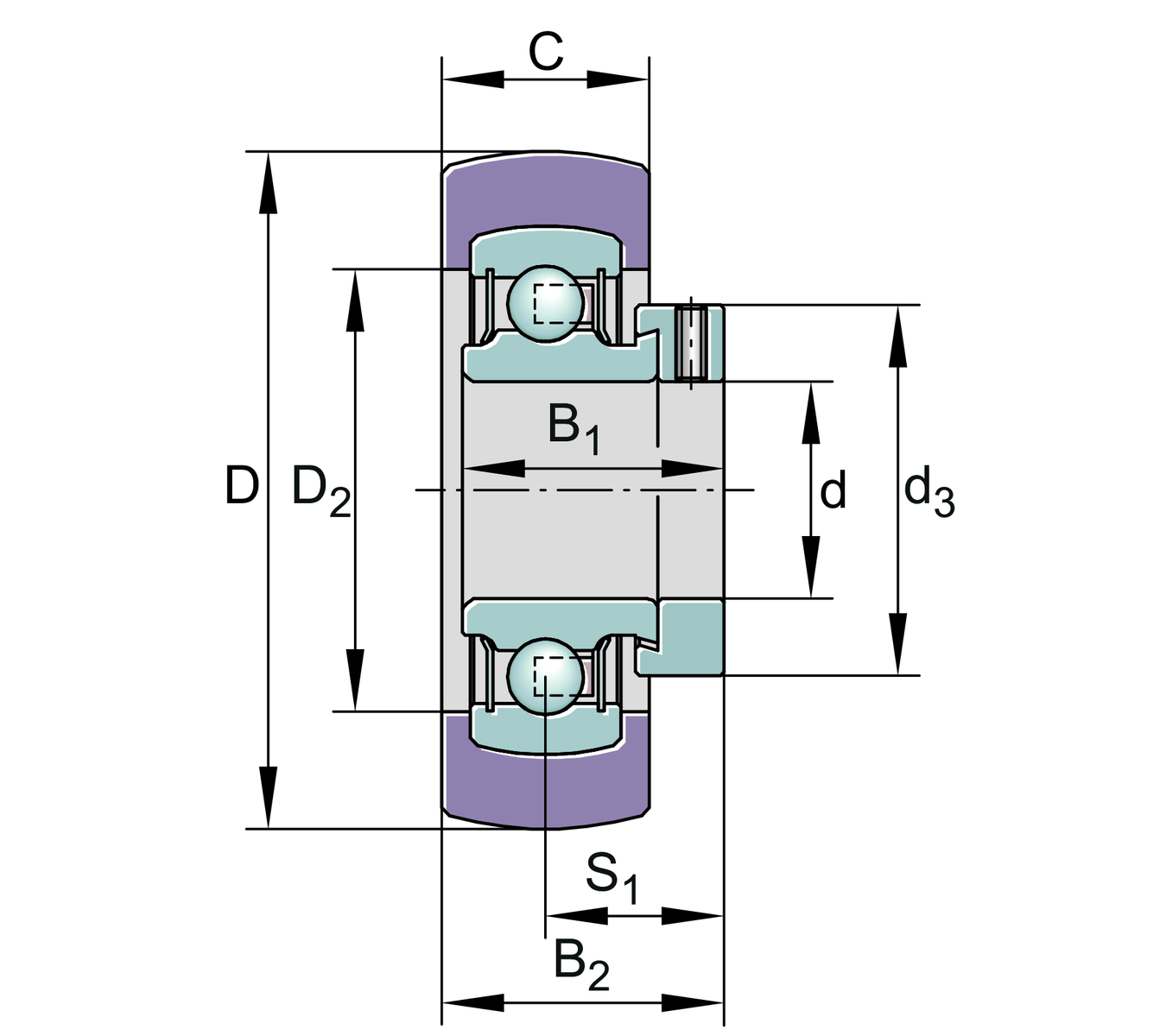

Dimensions
| Shore A | 70 ° | Hardness rubber interliner |
| S1 | 22.1 mm | Distance raceway to locking collar |
| D2 | 33.5 mm | Flange diameter rubber interliner |
| d3 | 28.4 mm | Outside diameter locking collar/locknut |
Calculation factors
| f0 | 13 | Calculation factor |
Additional information
| RAE15-XL-NPP-B-FA106 | Bearing designation |
Your current product variant
| Manufacturing instruction | FA106 | Bearing subjected to special noise testing |
