RA100-XL-NPP-B-L402/70-OSE

Radial insert ball bearing

Radial insert ball bearing RA..-NPP-B-L402/70-OSE

Description

RA100-XL-NPP-B-L402/70-OSE

Metric

Imperial

Main Dimensions & Performance Data
d25.4 mmBore diameter
d25.4 mmBore diameter, inch
DSP52 mmOutside diameter
B21.4 mmWidth
Cur400 NFatigue load limit, radial
Cr14,900 NBasic dynamic load rating, radial
C0r7,800 NBasic static load rating, radial
≈m0.133 kgWeight

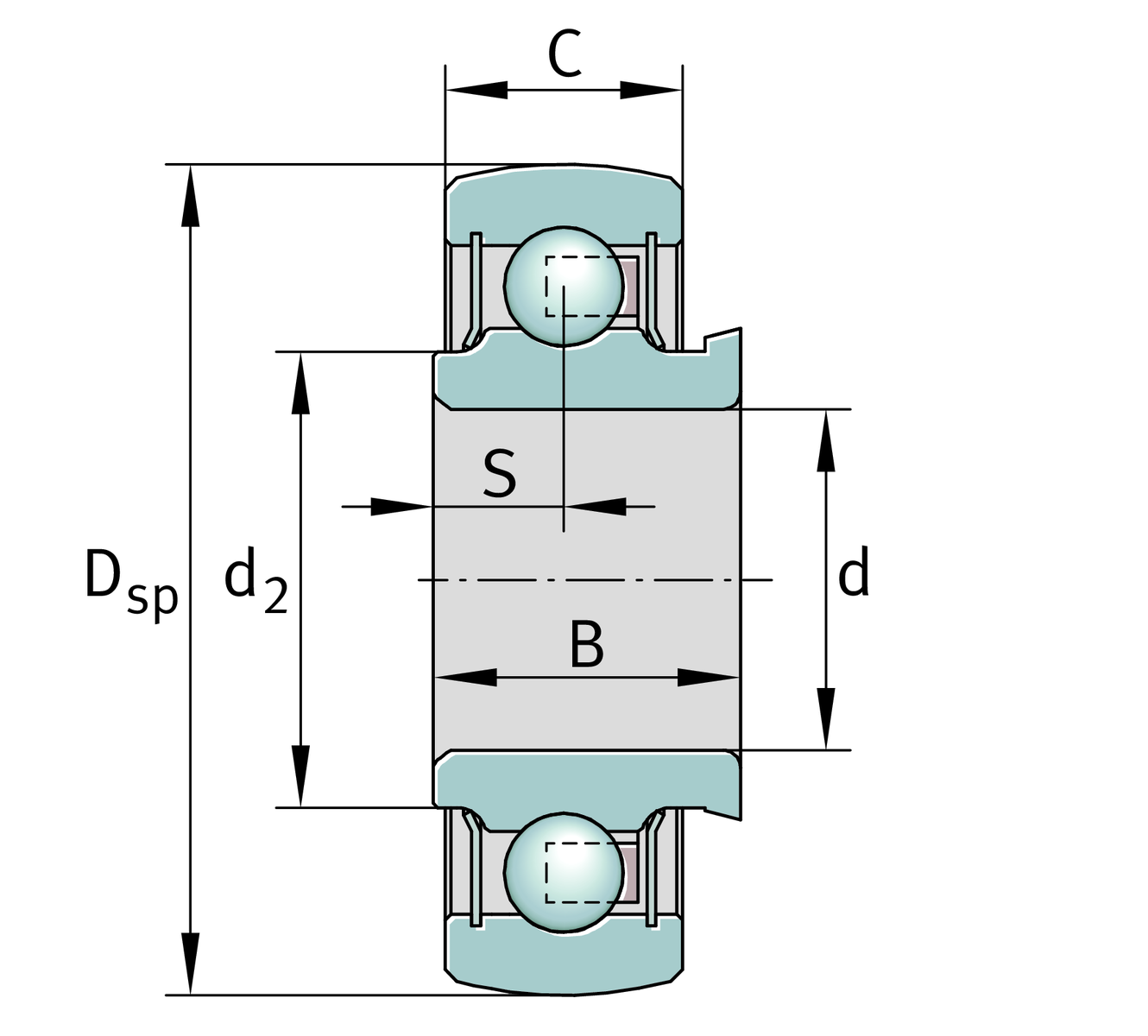

Dimensions
C15 mmWidth, outer ring
S7.5 mmDistance raceway
d230.36 mmRib diameter sealing inner ring
Temperature range
Tmin-20 °COperating temperature min.
Tmax100 °COperating temperature max.
Calculation factors
f013.8 Calculation factor
The technical dimensions for this product are taken from different dimensional systems, the conversion to the other dimensional system [blue color] is without guarantee.
Downloads:
Data sheet (PDF)
Your current product variant
SealingNPPNPP
Shape of outer surfaceBB
LubricantL402/70L402/70
Without locking deviceOSEBearing without locking element

Characteristics

clusteriteminfo.radialloadtranslation
clusteriteminfo.axialloadinonedirectiontranslation
clusteriteminfo.axialloadintwodirectionstranslation
clusteriteminfo.lifetimelubricationfreedomfrommaintenancetranslation
clusteriteminfo.greaselubricationtranslation
clusteriteminfo.sealedonbothsidestranslation
clusteriteminfo.staticangularerrorandmisalignmenttranslation
