PWTR1542-2RS-XL
Yoke type track roller
Yoke type track rollers PWTR..-2RS, full complement cylindrical roller set, with axial guidance, lip seals on both sides
Replaces
PWTR 1542.2RS, PWTR1542-2RS
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 15 mm | Bore diameter |
| D | 42 mm | Outside diameter |
| B | 19 mm | Width, inner ring |
| Cr w | 14,600 N | Basic dynamic load rating, radial |
| C0r w | 16,200 N | Basic static load rating, radial |
| Cur w | 2,180 N | Fatigue load limit, radial |
| nD G | 6,000 1/min | Speed on permanent grease lubrication |
| F0r per | 16,200 N | Permissible static load, radial |
| Fr per | 16,200 N | Permissible dynamic load outer ring, radial |
| ≈m | 0.156 kg | Weight |

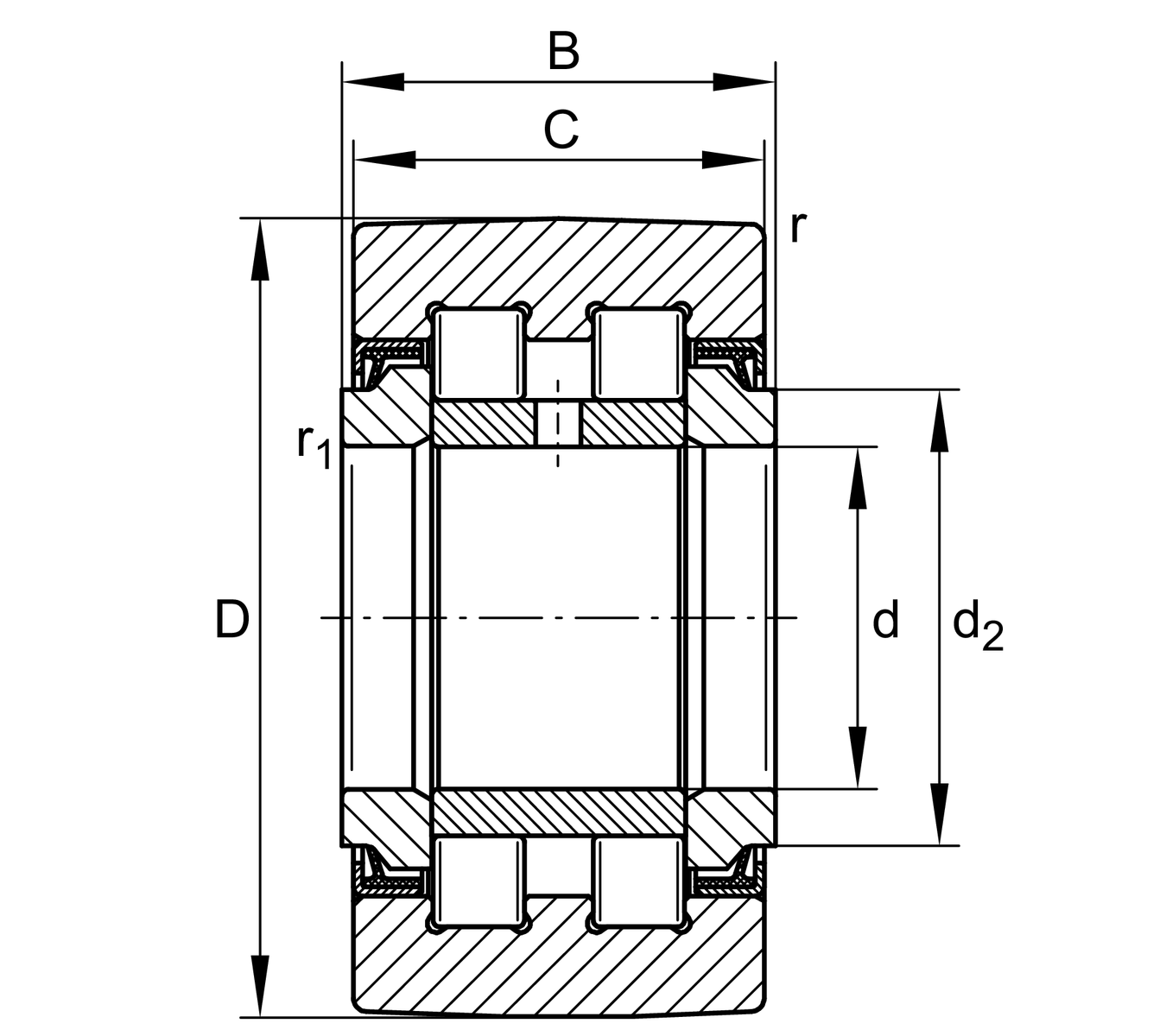

Dimensions
| C | 18 mm | Width, outer ring |
| d2 | 20 mm | Stop diameter of thrust washer |
| rmin | 0.6 mm | Minimum chamfer dimension |
| r1 min | 0.3 mm | Minimum chamfer dimension |
Your current product variant
| Sealing | 2RS | Protected lip seal on both sides |
| Outer Ring profile | Optimized INA-profile | |
| Relubrication feature | Via inner ring |
