NN3006-D-K-TVP-SP-XL

Cylindrical roller bearing

Super precision cylindrical roller bearings NN30..-D-K-TVP-SP, Non-locating bearing, double row, with tapered bore, taper 1:12, separable, with cage

Display units

Metric

Imperial

Main Dimensions & Performance Data

d	30 mm	Bore diameter
D	55 mm	Outside diameter
B	19 mm	Width
C_r	30,000 N	Basic dynamic load rating, radial
C_0r	31,000 N	Basic static load rating, radial
C_ur	4,550 N	Fatigue load limit, radial
n_{G Grease}	20,600 1/min	Limiting speed for grease lubrication
n_{G Oil}	24,200 1/min	Limiting speed for oil lubrication
≈m	179 g	Weight

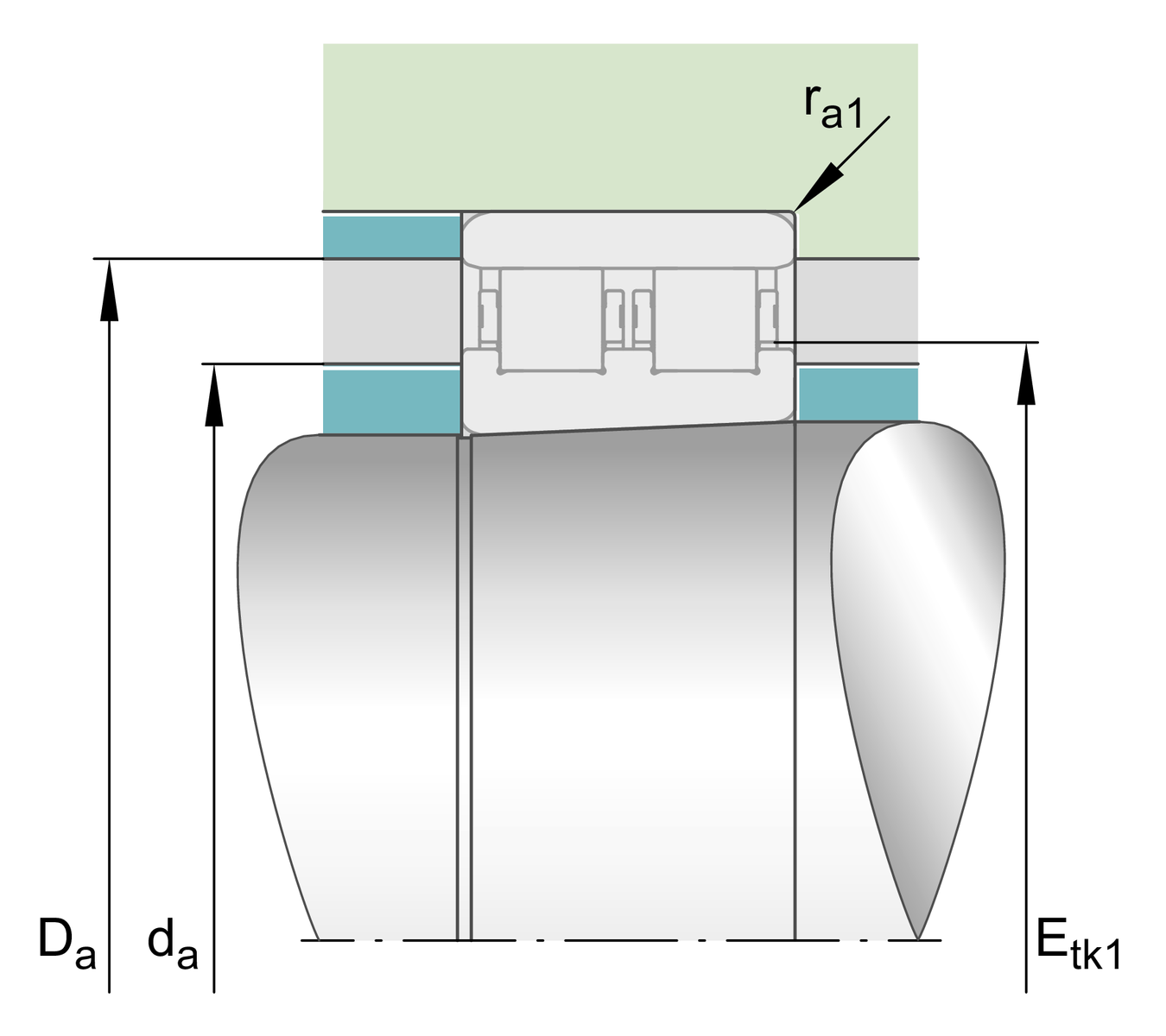

Mounting dimensions

d_a	38.5 mm	diameter shaft shoulder
	h12	diameter shaft shoulder tolerance
D_a	50 mm	diameter of housing shoulder
	H12	diameter of housing shoulder tolerance
r_{a1 max}	1 mm	Maximum recess radius

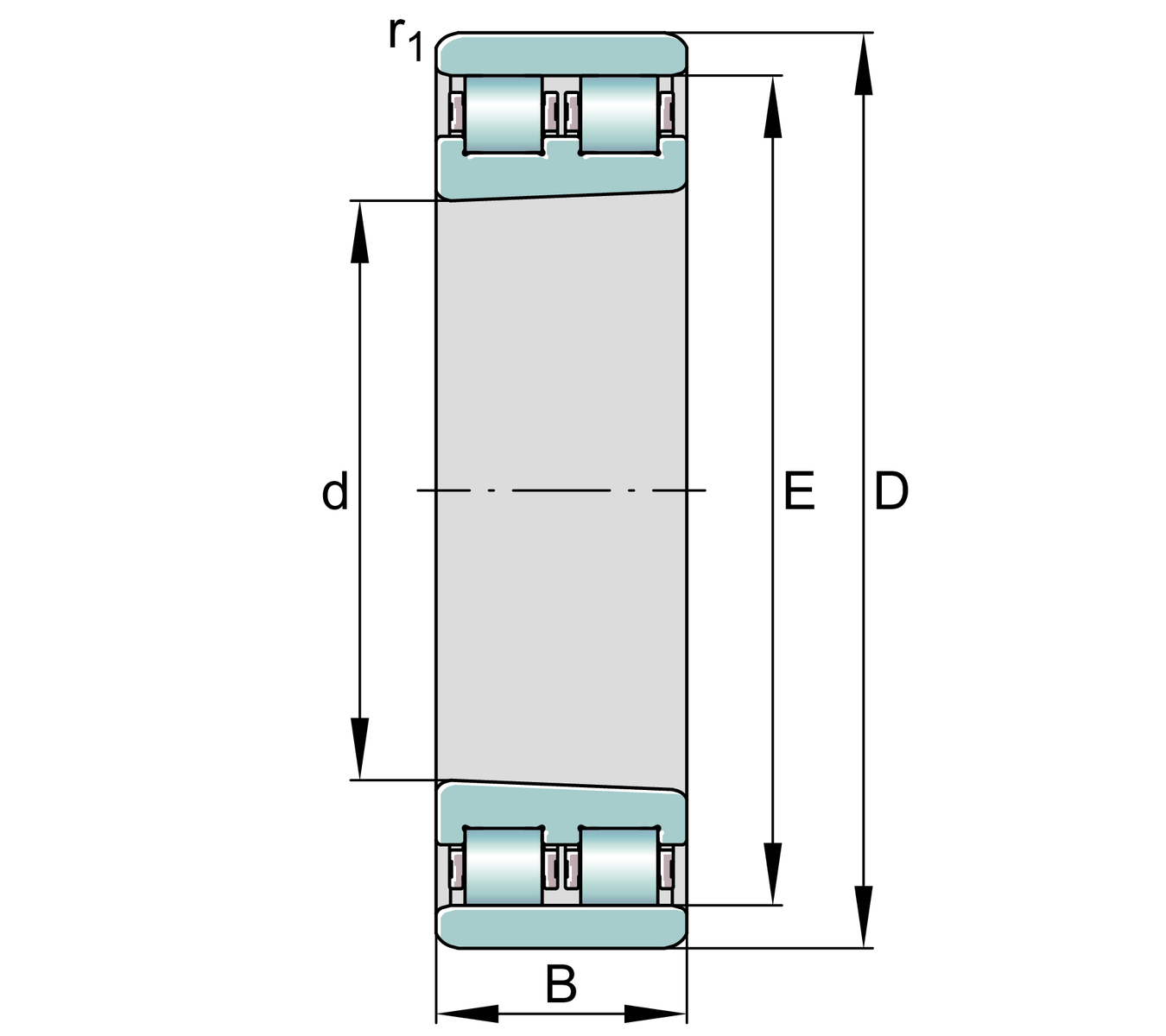

Dimensions

Temperature range

T_min	-30 °C	Operating temperature min.
T_max	120 °C	Operating temperature max.

Downloads:

Your current product variant

Cage	TVP	Plastic cage
Tolerance class	SP	tolerance class SP
Bore type	K	Tapered, taper 1:12
Change mark	D	Internal Variant D
Radial internal clearance	C1	Group 1 (C1)
Number of rolling element rows	2	Double-row design

Characteristics
