KSR16-L0-10-10-14-08
Roller chain idler sprocket unit
Roller chain idler sprocket unit KSR..-L0-10-10-14-08
Replaces
KSR 16.LO.10.10.14.08
Description
Metric
Imperial

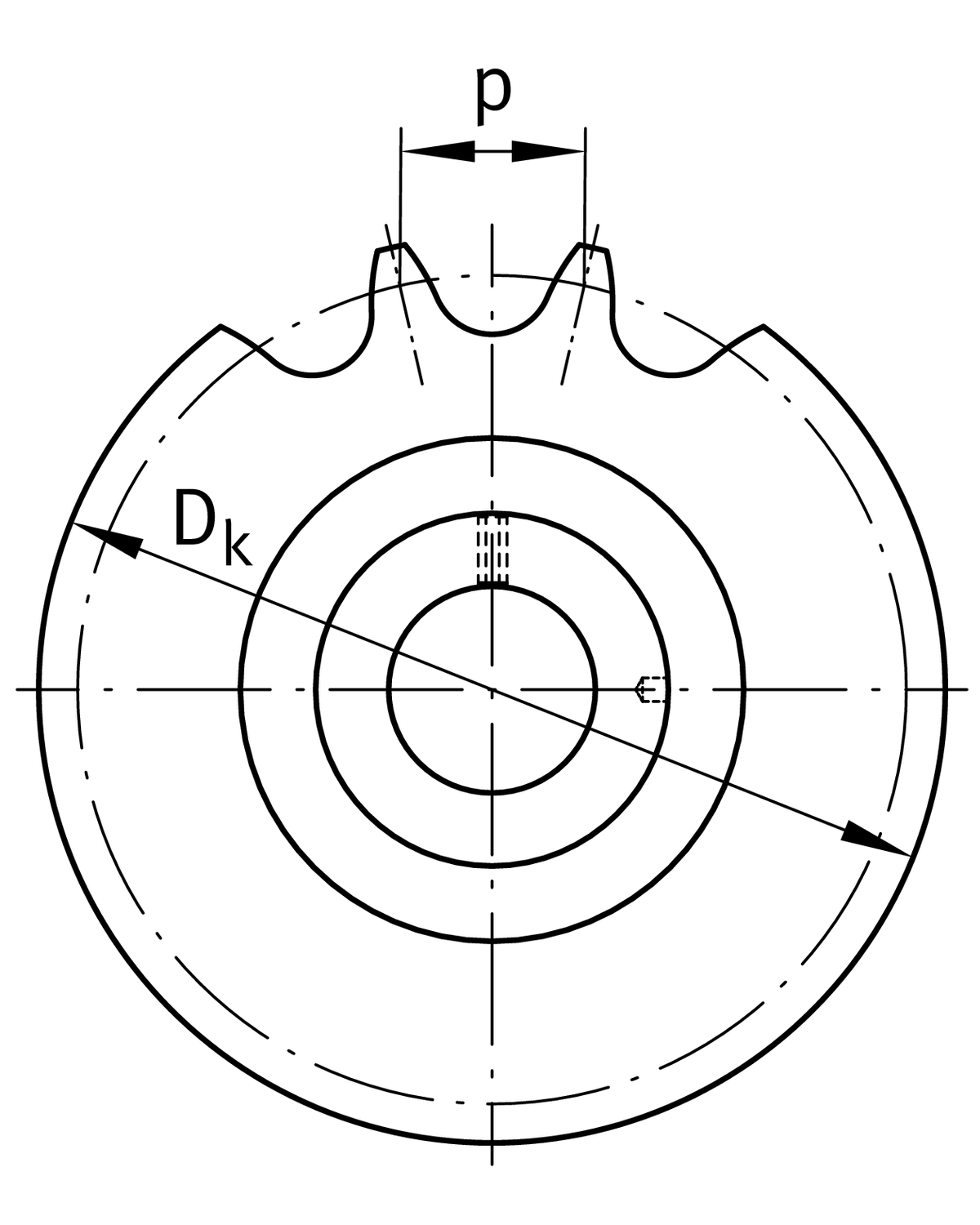

Main Dimensions & Performance Data
| d | 16.2 mm | Bore diameter |
| d | 0.1 mm | Upper tolerance |
| d | 0 mm | Lower tolerance |
| C1 | 8.7 mm | Thickness of sprocket |
| D0 | 71.3 mm | Pitch circle diameter (gearing) |
| Dk | 78 mm | Tip diameter (gearing) |
| ≈m | 0.21 kg | Weight |
Mounting dimensions
| p | 15.875 mm | Tooth set |
| z | 14 | Number of teeth |
| x | ISO chain | |
| x | ANSI chain |
Dimensions
| C2 | 1.3 mm | Chamfer width |
| D | 40 mm | Outside diameter |
| C | 12 mm | Width, outer ring |
| B | 18.3 mm | Width inner ring |
