Description
Metric
Imperial

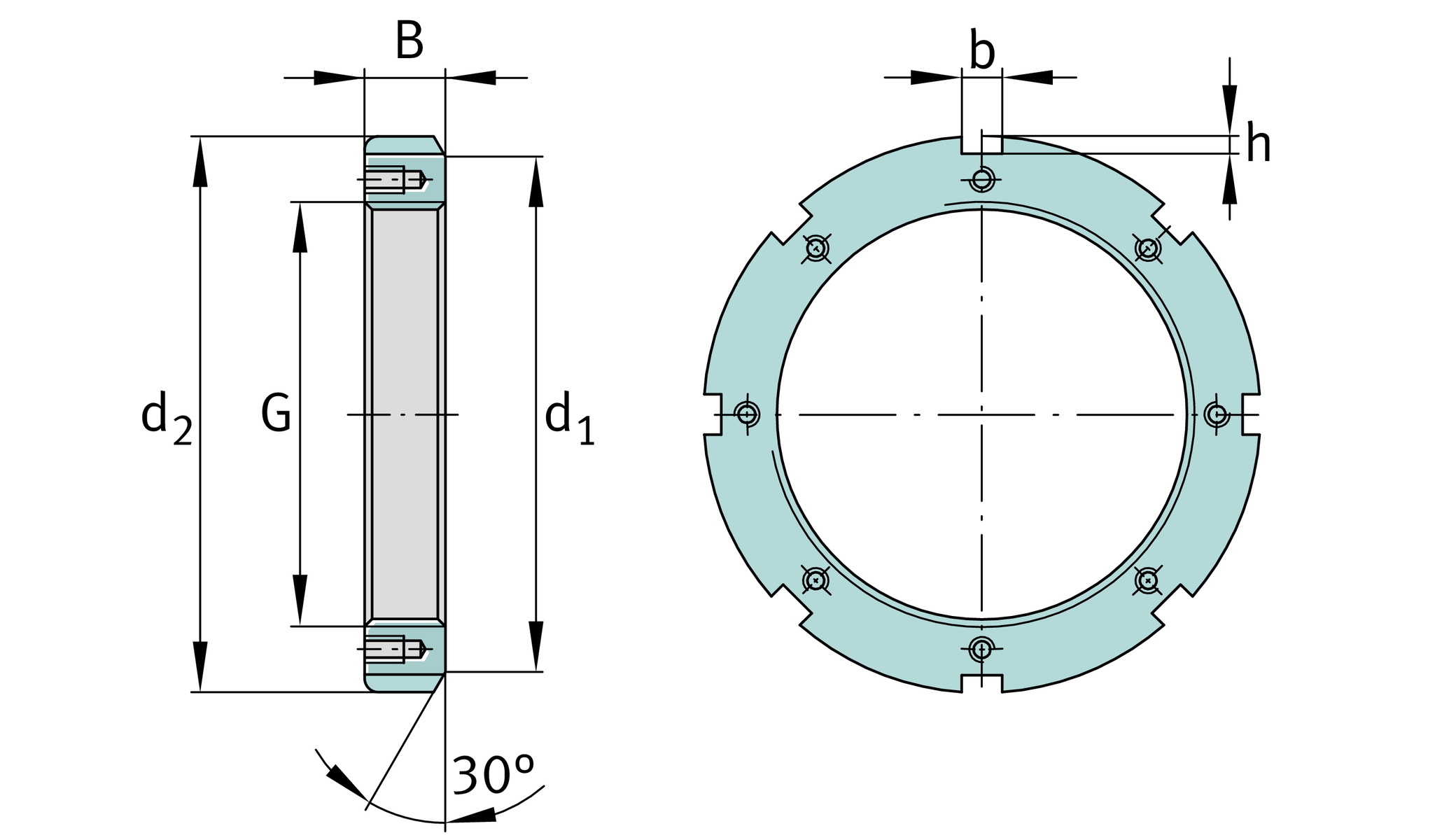

Main Dimensions & Performance Data
| G | Tr1000X8 | Thread |
| d2 | 1,240 mm | Outerside diameter |
| B | 125 mm | Width |
| ≈m | 361 kg | Weight |
Mounting dimensions
| d1 | 1,140 mm | Chamfer diameter |
| b | 70 mm | Width retaining slot |
| h | 38 mm | Hight retaining slot |
Additional information
| F | 36,000,000 N | Axial load capacity, static |
| MS31/1000 | Fuse | |
| 30 ° | Chamfer angle |
