GE120-XL-KRR-B
Radial insert ball bearing
Radial insert ball bearing GE..-XL-KRR-B
Replaces
GE120-KRR-B
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 120 mm | Bore diameter |
| DSP | 215 mm | Outside diameter |
| B | 63.5 mm | Width |
| B1 | 81 mm | Locking collar total width |
| Cr | 155,000 N | Basic dynamic load rating, radial |
| C0r | 131,000 N | Basic static load rating, radial |
| Cur | 4,800 N | Fatigue load limit, radial |
| ≈m | 7.49 kg | Weight |

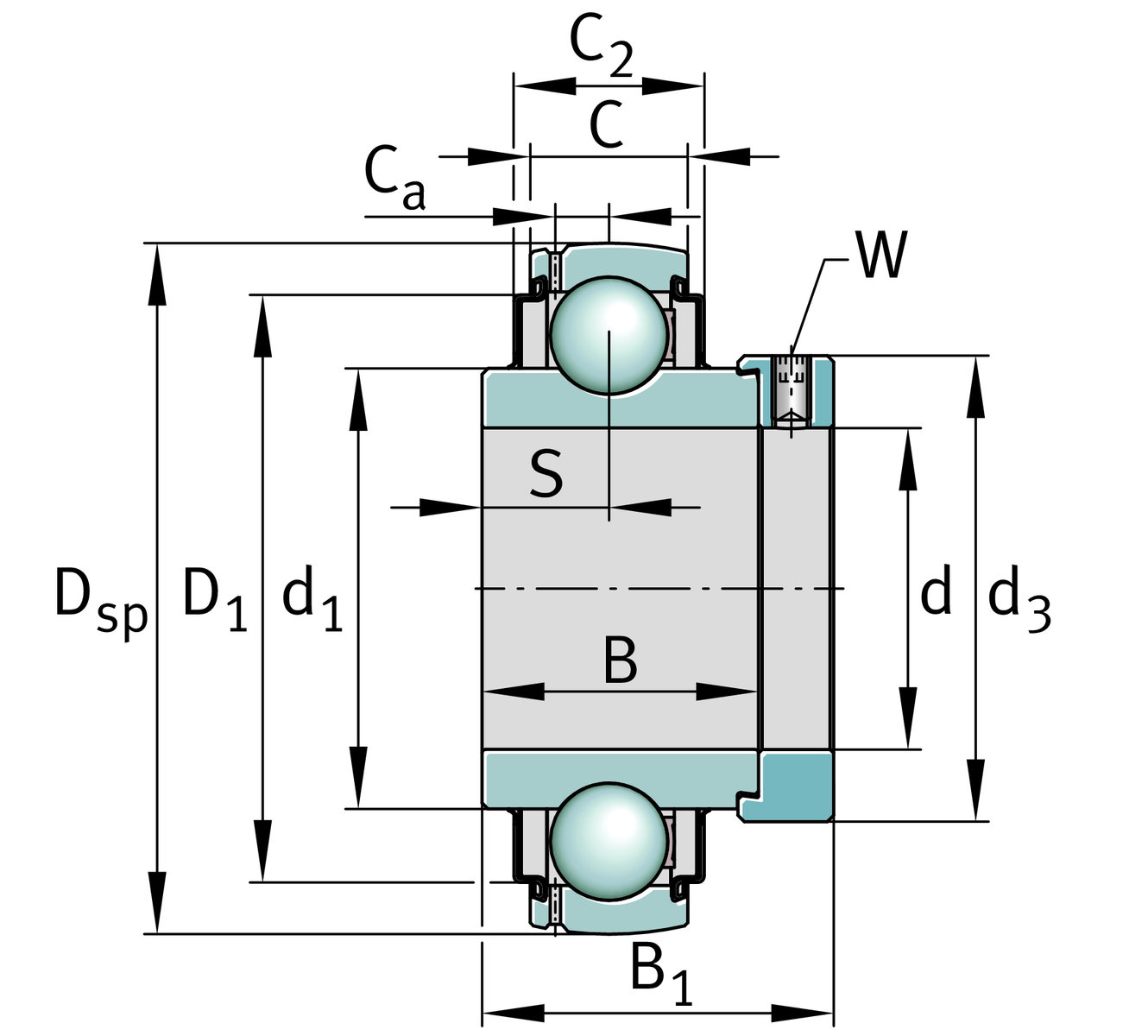

Dimensions
| C | 40 mm | Width, outer ring |
| C2 | 45 mm | Sealing total width |
| S | 28.5 mm | Distance raceway |
| d1 | 146.4 mm | Rib diameter inner ring |
| D1 | 186.5 mm | Outside diameter seal |
| Ca | 12.8 mm | Distance to lubrication hole |
| d3 | 152 mm | Outside diameter locking collar/locknut |
| W | 6 mm | Width of flats |
Calculation factors
| f0 | 14.4 | Calculation factor |
Your current product variant
| Sealing | KRR | Lip seals on both sides |
| Shape of outer surface | B | B |
