Main Dimensions & Performance Data
| d | 10 mm | Bore diameter bearing |
| D | 19 mm | Outside diameter bearing |
| B | 9 mm | Width Inner ring |
| Cr | 8,100 N | Basic dynamic load rating, radial |
| C0r | 36,800 N | Basic static load rating, radial |
| ≈m | 0.011 kg | Weight |

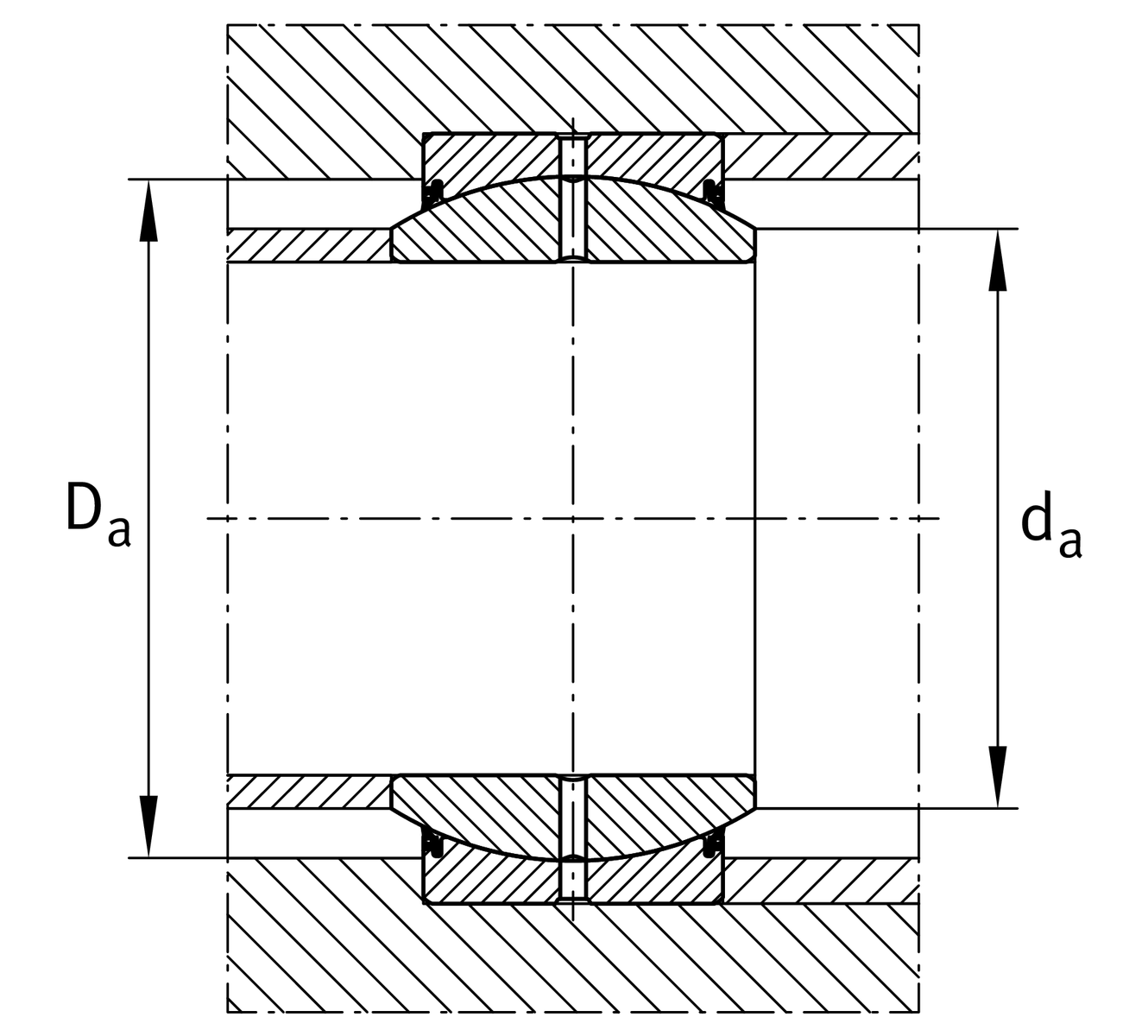

Mounting dimensions
| da max | 13.2 mm | Connection measure Inner ring |
| Da min | 15.3 mm | Housing Connection Diameter |

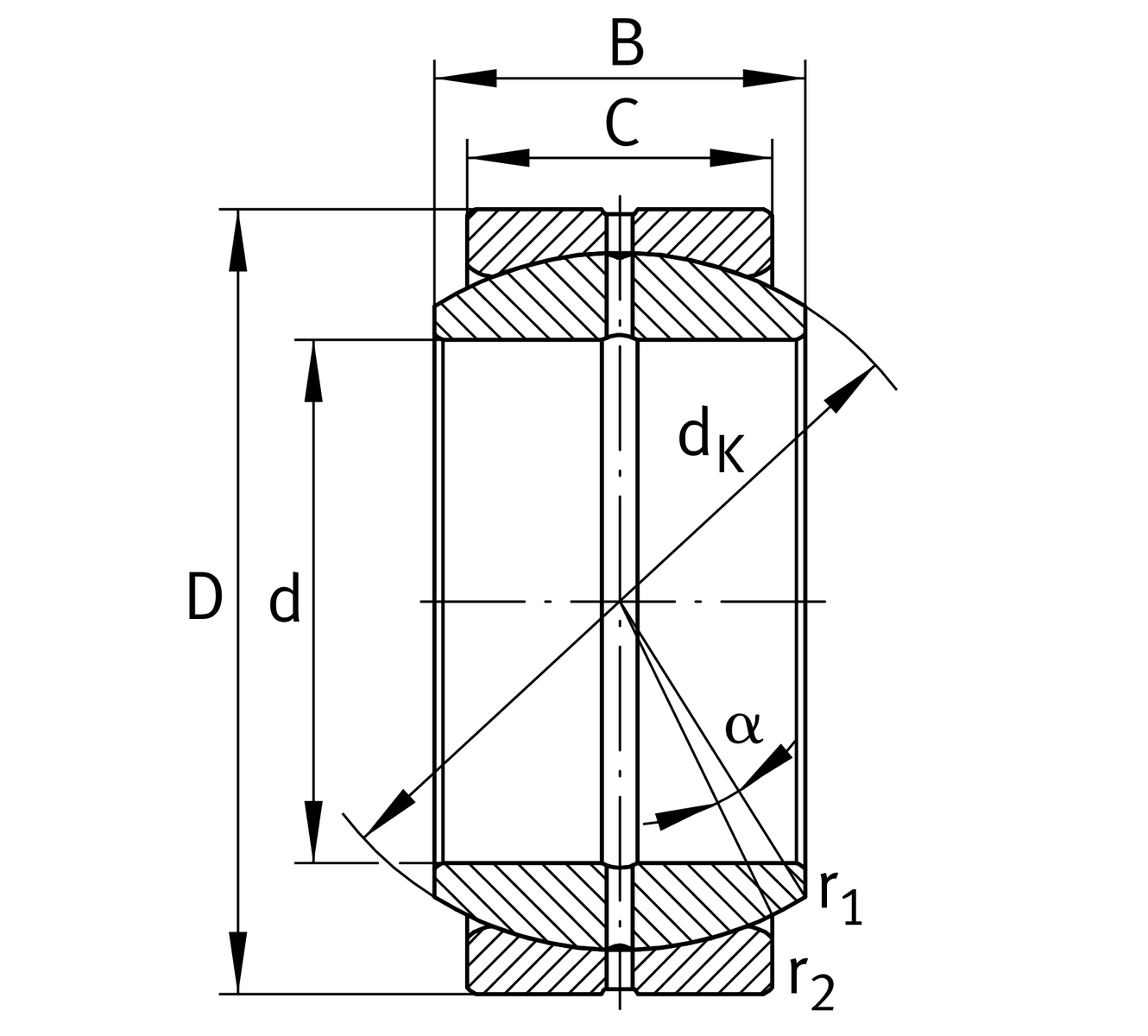

Dimensions
| C | 6 mm | Width Outer ring |
| dK | 16 mm | Ball diameter |
| α | 12 ° | Tilt angle |
| r1smin | 0.3 mm | Edge Spacing |
| r2smin | 0.3 mm | Edge Spacing |
| dOT | 0 mm | Bore diameter bearing, upper tolerance |
| dUT | -0.008 mm | Bore diameter bearing, lower tolerance |
| DOT | 0 mm | Outside diameter, upper tolerance |
| DUT | -0.009 mm | Outside diameter, lower tolerance |
| BOT | 0 mm | Width inner ring, upper tolerance |
| Gr | 0,032 – 0,068 mm | Radial Clearance |
| BUT | -0.12 mm | Width inner ring, lower tolerance |
| COT | 0 mm | Width outer ring, upper tolerance |
Temperature range
| Tmin | -60 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Downloads:
Your current product variant
| Sealing | Without | |
| Radial internal clearance | CN | Group N (CN) |
