F4B 315-SRB-SRE

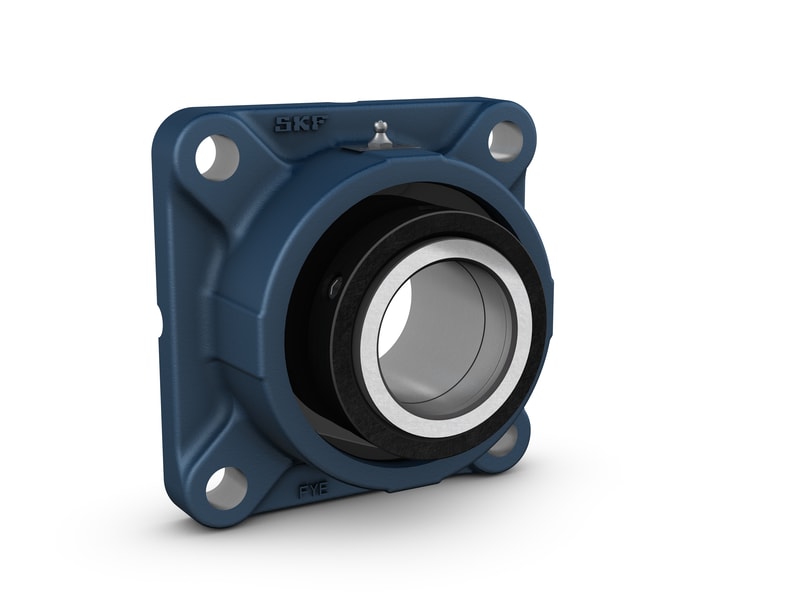

Flanged roller bearing unit with cast housingFlanged roller bearing units consist of an insert bearing mounted in a cast housing that can be bolted to a machine wall or frame. In addition to being part of a unit, some flanged housings for insert bearings are available as separate components. The SKF assortment includes roller bearing units compliant with several industrial standards, meeting many requirements regarding bolt patterns and mechanisms for locking onto on the shaft.
- Ready to mount
- Factory lubricated and sealed
- Long service life
- Minimal maintenance
- Variety of housing shapes, materials and locking methods
Description
| Metric/inch series | Inch |
| Bearing insert | Spherical roller bearing |
| Bearing position | Non-locating |
| Locking method | Set screws |
| Bearing housing seal type | Radial lip seal |
Dimensions
| da | 100 mm | Shaft diameter |
|---|---|---|
| d2 | 152.4 mm | Collar outer diameter |
| A | 88.9 mm | Housing width |
| A1 | 26.988 mm | Flange thickness |
| A2 | 49.213 mm | Machined face to centre line bearing |
| B | 116.688 mm | Inner ring width |
| J | 193.294 mm | Bolt distance or pitch diameter |
| L | 234.95 mm | Housing length |
| N | 23.813 mm | Bolt hole diameter |
| s | 41.275 mm | Inner ring centre to end |
| S | 0.794 mm | Centre line of locating support |
| T | 123.825 mm | Total width |
| GN | 1/8-27 NPT | Thread of grease fitting |
|---|
Calculation data
| Basic dynamic load rating | C | 311 kN |
|---|---|---|
| Basic static load rating | C0 | 415 kN |
| Fatigue load limit | Pu | 52.9 kN |
| Limiting speed | 2 100 r/min | |
| Limiting value | e | 0.24 |
| Calculation factor | Y1 | 2.8 |
| Calculation factor | Y2 | 4.2 |
| Calculation factor | Y0 | 2.8 |
| Bearing mean diameter | dm | 139.954 mm |
| Axial holding force of the locking mechanism | Pa | 5.34 kN |
Mass
| Mass bearing unit | 17 kg |
Mounting information
| Attachment bolt diameter | G | 0.875 in |
|---|---|---|
| Set screws | 5/8″-18 UNF-2A x 1″ | |
| Number of set screws | 2 | |
| Tightening torque for set screws | 149.705 N·m | |
| Grease quantity for relubrication | 13 g |
