C 39/850 KM

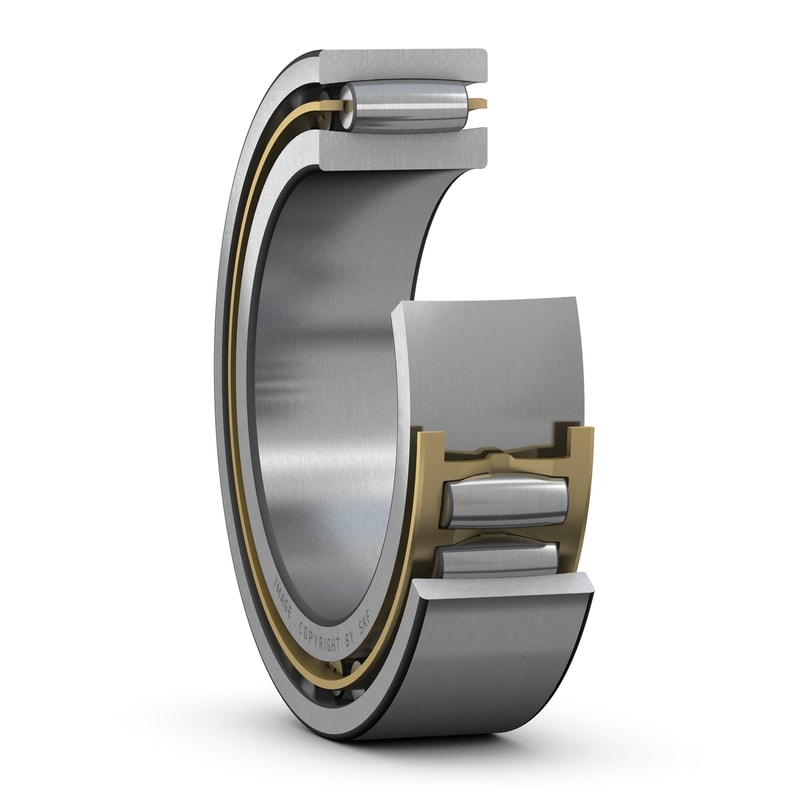

CARB toroidal roller bearing with tapered bore (1:12)CARB toroidal roller bearings are unique: as well as accommodating misalignment without increased stress levels, they also provide frictionless axial movement within the bearing in the non-locating position in self-aligning bearing arrangements. Being SKF Explorer bearings, they can accommodate higher load levels and provide significantly extended service life.
- Accommodate misalignment and axial displacement within the bearing
- High radial load carrying capacity
- Provide frictionless axial movement
- Long bearing system life
- Reduce noise and vibration levels
Description
| SKF performance class | SKF Explorer |
| Bore type | Tapered 1:12 |
Dimensions
| d | 850 mm | Bore diameter |
|---|---|---|
| D | 1 120 mm | Outside diameter |
| B | 200 mm | Width |
| d2 | ≈ 940 mm | Shoulder diameter of inner ring |
| D1 | ≈ 1 053 mm | Shoulder or recess diameter of outer ring |
| s1 | max. 35.9 mm | Permissible axial displacement |
| r1,2 | min. 6 mm | Chamfer dimension |
Abutment dimensions
| Da | min. 1 025 mm | Diameter of housing abutment |
|---|---|---|
| Da | max. 1 097 mm | Abutment diameter housing |
| Ca | min. 2.9 mm | Minimum width of space required in housing |
| ra | max. 5 mm | Radius of fillet |
| ||
Calculation data
| Basic dynamic load rating | C | 7 350 kN |
|---|---|---|
| Basic static load rating | C0 | 16 300 kN |
| Fatigue load limit | Pu | 960 kN |
| Reference speed | 360 r/min | |
| Limiting speed | 480 r/min | |
| Misalignment factor | k1 | 0.135 |
| Internal clearance factor | k2 | 0.098 |
Mass
| Mass | 525 kg |
