22238-BE-XL-K-C2
Spherical roller bearing

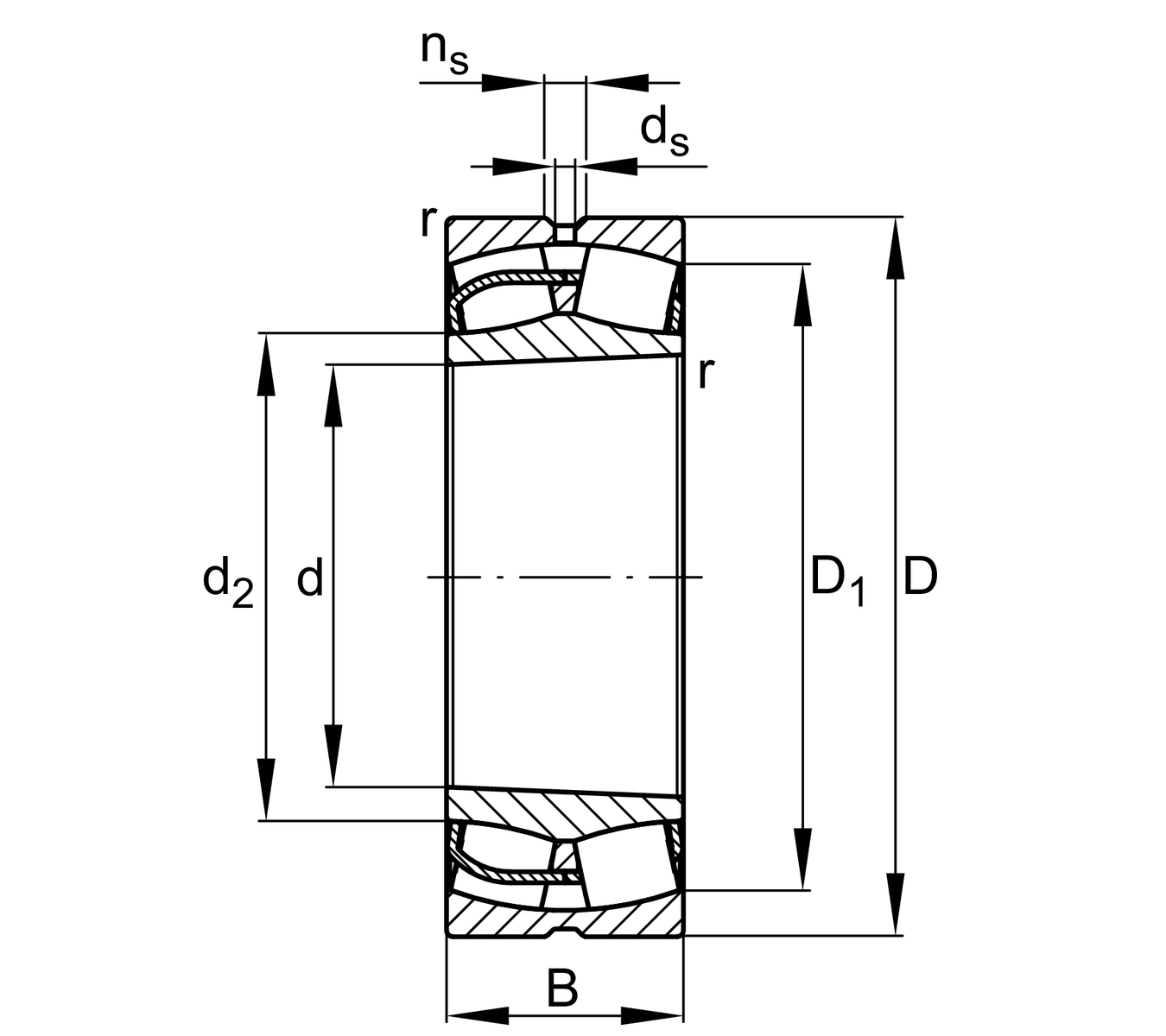

Spherical roller bearings 222..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
Replaces
22238-E1-K-C2
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 190 mm | Bore diameter |
| D | 340 mm | Outside diameter |
| B | 92 mm | Width |
| Cr | 1,360,000 N | Basic dynamic load rating, radial |
| C0r | 1,760,000 N | Basic static load rating, radial |
| Cur | 164,000 N | Fatigue load limit, radial |
| nG | 2,480 1/min | Limiting speed |
| nϑr | 1,620 1/min | Reference speed |
| ≈m | 34.65 kg | Weight |
Mounting dimensions
| da min | 207 mm | Minimum diameter shaft shoulder |
| da max | 223 mm | Maximum diameter of shaft shoulder |
| Da max | 323 mm | Maximum diameter of housing shoulder |
| ra max | 3 mm | Maximum recess radius |
| db min | 202 mm | Minimum cavity diameter of the sleeve |
| Ba min | 21 mm | Minimum cavity width of the sleeve |
Dimensions
| rmin | 4 mm | Minimum chamfer dimension |
| D1 | 295.2 mm | Bore diameter outer ring |
| d2 | 225.2 mm | Raceway diameter of the inner ring |
| ds | 9.5 mm | Diameter lubrication hole |
| ns | 17.7 mm | Width of lubricating groove |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 200 °C | Operating temperature max. |
Calculation factors
| e | 0.26 | Limiting value of Fa/Fr for the applicability of diff. Values of factors X and Y |
| Y1 | 2.6 | Dynamic axial load factor |
| Y2 | 3.87 | Dynamic axial load factor |
| Y0 | 2.54 | Static axial load factor |
Additional information
| H3138 | Adapter sleeve | |
| AH2238G | Withdrawal sleeve |
Downloads:
Your current product variant
| Design | BE | with lose center lip ring |
| Bore type | K | Tapered, taper 1:12 |
| Cage | JPB | Sheet metal cage |
| Radial internal clearance | C2 | Group 2 (C2) |
| Relubrication feature | Standard |
