Axial angular contact ball bearing
Axial angular contact ball bearing 7602..-TVP, single direction, no screw mounting
Replaces
7602015TVP
Description
Metric
Imperial
Main Dimensions & Performance Data
| d | 15 mm | Bore diameter |
| 0 mm | Bore diameter upper tolerance | |
| -0.004 mm | Bore diameter lower tolerance | |
| D | 35 mm | Outside diameter |
| 0 mm | Outside diameter upper tolerance | |
| -0.006 mm | Outside diameter lower tolerance | |
| B | 11 mm | Width |
| 0 mm | Width upper tolerance | |
| -0.08 mm | Width lower tolerance | |
| Ca | 13,100 N | Basic dynamic load rating, axial |
| C0a | 24,700 N | Basic static load rating, axial |
| Cua | 1,120 N | Fatigue load limit, axial |
| nG Grease | 12,300 1/min | Limiting speed for grease lubrication |
| nϑ | 6,700 1/min | Thermally safe operating speed |
| ≈m | 0.05 kg | Weight |
Mounting dimensions
| Da | 30 mm | Diameter of housing |
| Da | H12 | Diameter of housing clearance |
| da | 20.5 mm | Diameter shaft |
| da | h12 | Diameter shaft clearance |
Dimensions
| rmin | 0.6 mm | Minimum chamfer dimension |
| r1 min | 0.6 mm | Minimum chamfer dimension |

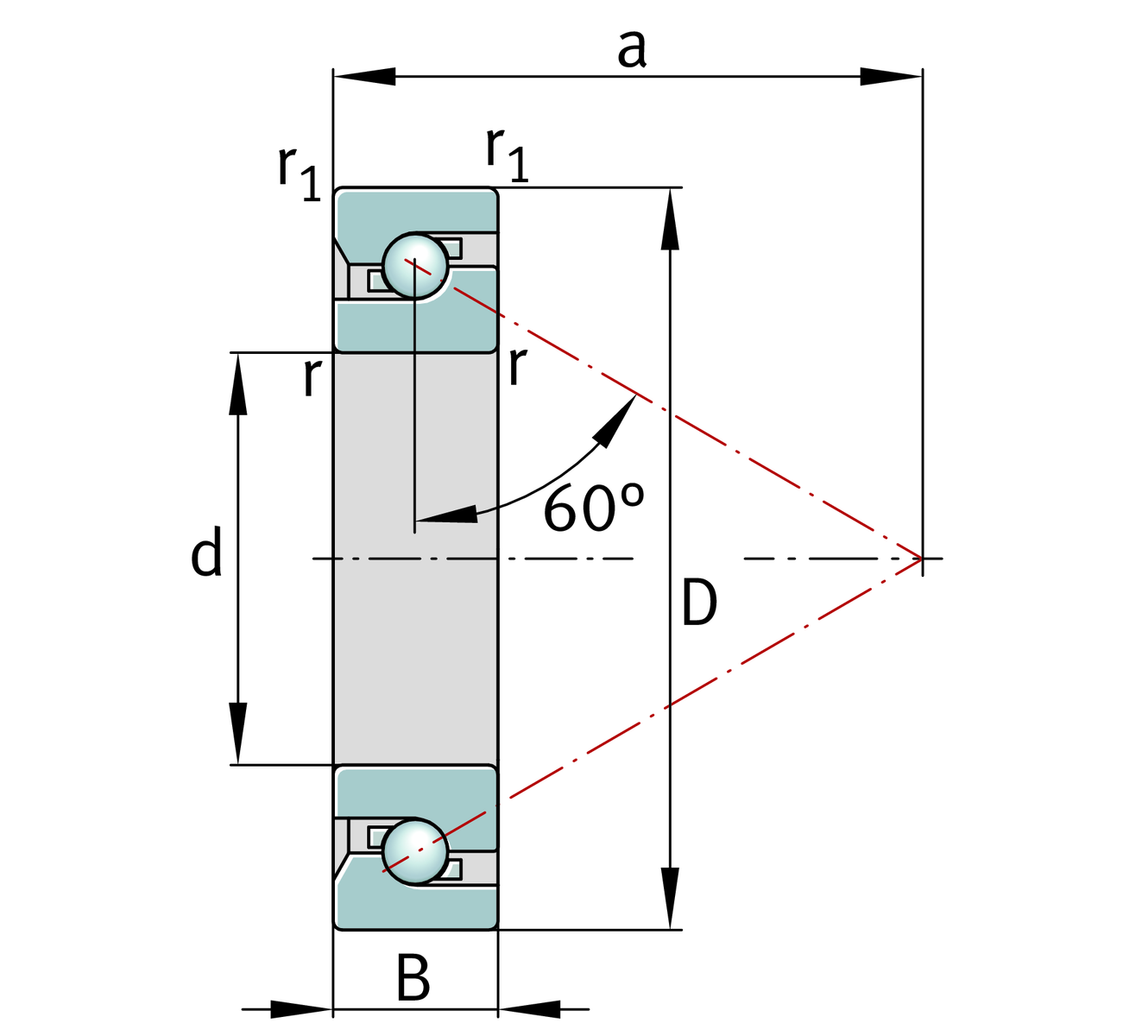

| a | 27.5 mm | Distance between the apexes of the pressure cones |
| α | 60 ° | Contact angle |
Temperature range
| Tmin | -30 °C | Operating temperature min. |
| Tmax | 120 °C | Operating temperature max. |
Additional information
| MR | 0.02 Nm | Bearing frictional torque |
| caL | 516 N/µm | Rigidity axial |
| 2 µm | Axial runout | |
| ZM15 | Recommended INA precision locknut for radial locking | |
| AM15 | Recommended INA precision locknut for axial locking | |
| MA | 10 Nm | Tightening torque for the recommended INA precision locknut |
| 5,740 N | Required locknut force axial |
Your current product variant
| Cage | TVP | Plastic cage |
| Sealing | Without | Unsealed |
| Arrangement bearing set | Standard | Single bearing |
| Lubricant | Without | not greased |
